RENEGADE R5 MKII

DESIGN

The original R5 series and has proven to be a very capable bluewater cruiser. A lot of care and consideration was taken in her development and construction with an emphasis on versatility, large social areas, ease of handling, performance, rigidity, and style.

​

The new R5MKII now incorporates a lot of the new design features of the R6 which elevates this series to new heights.

​

Our goal was then to retain what makes the R5 such a comfortable and easy to handle offshore performance yacht and add more of the finishing trims and hull volumes that people expect in a modern performance liveaboard. To that end, she features a redesigned hull that is slightly wider, slightly longer, and allows her to carry a little more in the way of creature comforts. Her engineering has been completely redone and the platform now features full carbon construction for all of the full-width bulkheads as standard with all components vacuum infused for optimum weight and structure integrity control.

LIVING

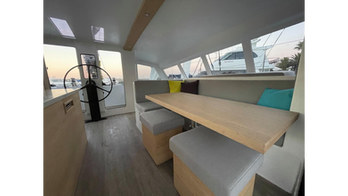

The additional hull volume and the new R6 inspired coachroof allow for the MKII to feature a similar ultra-versatile 3 or 4 cabin layout to the majestic R6. She retains the MKI’s large saloon but gains better visibility and headroom along with an opening helm window and twin sliding roof hatches above the helm as found on the R6.



 Her internal finishing utilises natural timbers clad over foam cored structure as well as synthetic textured surfaces bonded on to PVC substrates. She shares the R6 Davit System, features very large bunks throughout and includes an overhanging galley counter which allows for a breakfast/bar seating common. This series also features a host of amenities that can be tailored to your needs including Induction cooktops, electric oven, fridge, freezer, dishwasher and many more.

The R5 was developed to take full advantage of electrical propulsion systems which have proved to be popular in this series.

As previously, we are offering the Mk2 with a full Electric propulsion system as standard and the design has been further refined to be built around electric propulsion, however, there is a traditional diesel option available.

​

The Propulsion system is powered by high voltage lithium batters which can be replenished by a large solar array, hydro regeneration, rapid shore charging or range extending generator.

The additional capacity allows for the use of induction cooktop, electric oven, electric water heater and all round better electrical load management.

​

This series comes standard again with a Fully integrated B&G sailing package and a host or other creature comforts.

For a additional control, a CZONE Digital switching system can be installed as well as the “sail by wire” system, as found standard with the R6 series.

TECHNOLOGY

The performance of the R5 speaks for itself where she comfortably achieves 200 miles per day without generating high loads which causes breakages. She covers distances effortlessly, but can also be dialled up to reward sailors with an exhilarating ride when required. Her sailing cockpit is a safe and secure sail handling area optimised for single-handing with all sail controls in one location and includes an electric line driver (used on all the R line yachts) to control the mainsheet traveler.

​

This series includes a Sparcraft Aluminium spars package consisting of mast, boom, longeron and crossbeams and is complemented with a set of performance Ulman sails. In addition, her light weight construction and large daggerboards ensure that achieving close to windspeed is easily achievable.

PERFORMANCE

SPECIFICATIONS

    • Length overall – 16.6m (54.5 ft)

    • Beam overall – 8.2m (26.9 ft)

    • LWL waterline 16.2m (53.1 ft)

    • Draft - 1.5m (4.9 ft)

    • Draft daggerboards down – 3m (9.8 ft)

    • Bridge-deck clearance – 1m (3.2 ft)

    • Light displacement – Approx. 11.5mt

    • Vacuum infused epoxy e-glass shell construction with carbon reinforcing, sandwiched between high-density core

    • Full carbon – main bulkheads

    • Gurit structural PVC/corecell core throughout

    • Gurit epoxy resin systems

    • Full post-cure on completed shell

    • Alexseal primers and topcoats

    • Foil Construction – Carbon Daggerboards

    • 2 x 1.9m x 1.85m fwd bunks

    • 2 x 1.95m x 1.8m aft bunks

    • 4 x shower

    • 4 x Techma Silence plus freshwater toilet

    • 1 x Sail locker

    • 1 x large multipurpose locker

    • 4 x fordeck lockers

    • Custom light-weight high density foam core cabinetry, sandwiched in between bamboo paneling.

    • *Optional office – requires one of the aft bunks to be converted.

    • Airconditioning – Climma chiller unit with 4 x fancoil for bunks

    • Fresh Water Capacity - 415L

    • Schenker Zen 100 watermaker

    • 2 x 100L black tank capacity

    • Acrylic Hull windows with 4 x lewmar flush size 0 portlight

    • Toughened glass saloon windows

    • 2 x Webasto 20 series sunroof

    • Sparcraft aluminium spar package

      • Mast 19.4m (63.6ft)

      • Longeron

      • Cross Beams

      • Anchor box

      • Dyform seagull striker

      • Dyform standing rigging

    • Mainsail - Ullman FiberPath (50% carbon / 50% twaron) – 91 sqm (979 sqft)

    • Self-tacking Jib - Ullman FibrePath (50% Carbon / 50% twaron) - 42m2 (452 sqft)

    • Storm Jib – Ullman Crosscut Dacron – 13 sqm ( 139.9sqft)

    • Code 0 – Ullman Red line Racing (Radial laminate) - 100sqm (1076 sqft) Asymmetrical spinnaker - Blue line Cruising (Radial nylon) – 179 sqm (1926 sqft)

    • Antal deck gear

    • 2 x Harken 50 self-tailing winches

    • Antal Line driver for main sheet traveler with switches in both cockpits

    • Large Forward cockpit with ease of access to all controls

    • Forward interior helm position

    • Jefa Steering and rudder system

    • Dyneema running rigging

    • Karva Headboard hook

    • Spinlock clutches

    • B&G Triton

    • 12-inch Multifunction interior saloon

    • 4.1-inch multifunction interior Saloon

    • 1 x 4.1-inch Multifunction, Mast mounted, FWD cockpit

    • 1 x 4.1-inch pilot control mast, Mast mounted, FWD cockpit

    • Radar

    • AIS

    • VHF

    • Flexiteek Flooring in FWD and AFT cockpit

    • Carbon Composite Davit tender lifting system

    • Large sugar scoops with swim ladder

    • Adjustable seating arrangement for up to 10 guests

    • Semi customizable interior layout options available

    • Customizable finishes and products available

    • Large open plan kitchen with corian tops

    • Induction Cooktop

    • Electric Oven

    • Fridge/Freezer

    • Dual-purpose seating arrangements

    • Coffee Table

    • LED Lighting throughout

    • Dimmable and custom lighting options

    • Vinyl flooring throughout

    • *Optional - dishwasher

    • *Optional - table convertible to bunk

    • Torqeedo Deep Blue electric propulsion system

    • 2 x 25KW electric engines

    • 1 x 40KWh 360v BMW I3 lithium water cooled battery (Engine and charging)

    • 2 x 3500 Wh 24v lithium batteries (Hotel Loads)

    • 2 x 3.3Kw Chargers

    • 1 x Water-cooled 6KVA inverter

    • 1 x range extender DC generator

    • 8 x 400W solar panels

    • 2 x 17 inch flexofold folding propellers

    • Hydro regeneration

    • Dedicated 9-inch customizable Torqeedo control panel

    • Custom comfort mattress thought

    • 220v and 12v electrical outlets

    • 24v variable speed fans

    • 2 x reading lights in all cabins

    • AC panel and remote

    • Ample drawer and hanging space

    • Vinyl interior flooring throughout

    • Concept & equipment:

      • Ocean Renegade Design Office​

    • General Arrangement & Styling:​

      • Ocean Renegade Design Office

      • KND Design​

    • Naval Architecture & Engineering:​

      • KND Design​

    • Spars & rigging: ​

      • Marstrom

      • Sparcraft​

    • Classification:

      • CE Category A ​

    • Sail by wire system

      • 2 x composite seats

      • Carbon tillers

      • Steering upgrades

      • Remote controls for winches and traveler

    • 2x Harken 60 self-tailing rewind winches​

    • Tender

    • Marstrom carbon spars package

    • Yanmar 4JH57 diesel engine

    • Full carbon laminate

    • North 3Di sail package

    • Sunroof

    • Additional fridge
